PTS Programming Test Station - Hybrid Test Technology

Set New Industry Standards

※ Advance production without repetitive design

※ Spare parts inventory, high reusability

※ Short delivery cycle for equipment and fixtures
Global Deployment Services

※ Localized technical support

※ Local inventory for rapid response

※ Greatly reduce maintenance waiting time
Boost Production Efficiency

※ Ultra-fast Programming Time

※ Parallel Programming

※ Dual-track Bypass Support
Open Platform

※ Self-developed HarmoMaster Test Platform Software (Open API, Reduce Additional Software Costs)

※ Open Fixture Kits & Specification Documents (Ecosystem-independent, lower fixture costs)
Cost Reduction

※ One machine fulfills all programming and testing requirements (Reduce equipment quantity, lower initial investment and maintenance costs)

※ Built-in self-developed programmer with unlimited device authorization (No third-party reliance, no subsequent licensing fees)

PCB specifications
PCB width	50-330mm（250mm with family box）
PCB length	50-400mm（360mm with top to bottom reference）
PCB ratio	0.8 （length ≥ 0.8 x width）
PCB thickness	>0.8mm
Component height(top/bottom)	max. 50.8mm/25.4mm
PCB edge support	2.0-4.5mm adjustable
PCB weight	max. 2.5kg
Technical indicators
PCB exchange time	typical 4.5 sec(product dependent)
Downward pressure	1000N Spindle driven
Connecting method	Bottom, top, single grade, double grade
Positioning PCB block	Transmission guide rail
Transmission speed belt	100-800 mm/sec
Transmission height	930-980mm
Transport direction	L=R, R=L(to be specified at time of order)
19 "electronic equipment installation space	11HE(+1 HE with 500 mm depth if no bypass)
Fixed device conversion time	<1min(top&bottom)
Protective screen	ESD Safe
Controller	OMRON PLC with LCD operator panel
Energy requirements	230V+/-10%,50Hz-208V+/-10%,60Hz-200VA
Compressed air	6-20% bar,according to DIN ISO 8573 3.4.5
Color	RAL 7035 ESD
Size(L×W×H)	500x850x1.500mm without signal tower
Weight	approx. 250 kg
Software	Interface DLL, EXE
Standards	SMEMA,CE

Fully Self-Developed Platform Software: No reliance on third-party software, no extra fees for LabVIEW/TestStand Supports user login, visual debugging, flow programming, MES integration, DLL/EXE invocation and other functions

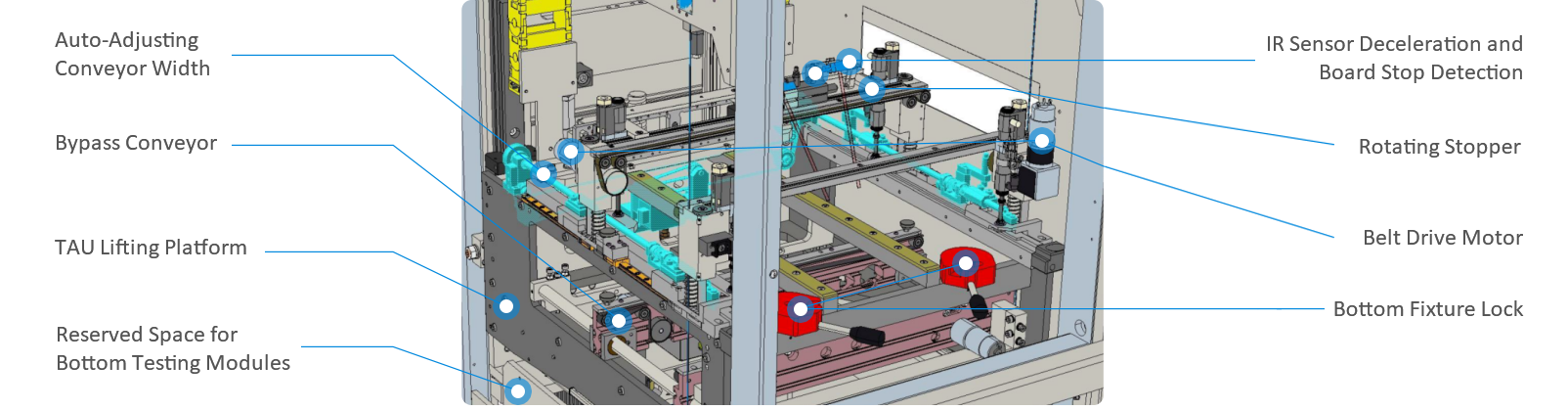

Internal Structure: Scientific & Compact Layout with Industrial Aesthetic Design

Standard Fixtures: All fixture design documents provided, no binding to fixture manufacturers. Cooperate with professional KIT manufacturers for mass production of fixture kits to reduce costs and shorten delivery lead time.

3D Step

Design Specifications

Pin Definition

Wiring Documents

Partners: Provide professional programming technology and customized inline programming solutions for customers

Empowering Global Electronics Producers with Highly Efficient, Secure, and Economical Programming & Testing Services.: Talk to a Sales Engineer for Custom Technical Solutions.
