FlashLink Programmer - Hybrid Test Technology

Leader in Global In-System Programming Solutions: We have established technical service centers in key countries worldwide to deliver superior service experience for global customers: senior engineers provide 24-hour online service and technical support.

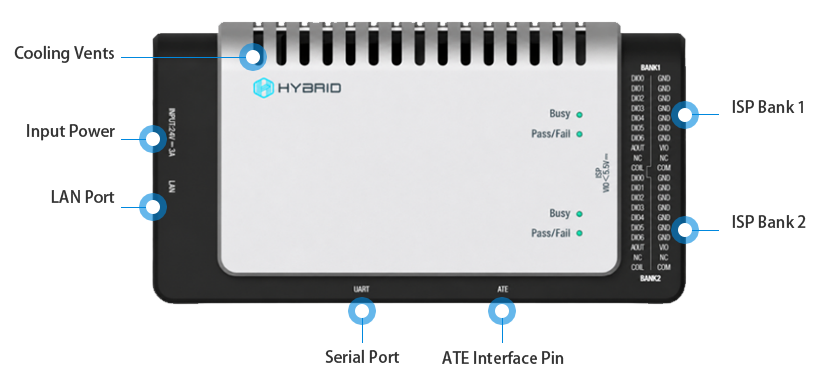

DC24V@3A input voltage, compliant with 3C safety standards. Robust and stable power supply ensures stable programming process.
Supports 1Gbps high-speed network communication to ensure low-latency data transmission; supports remote monitoring and multi-channel monitoring.
The two fully independent channels support parallel programming of A+A (identical devices) and A+B (different devices) without mutual interference.
Each channel is equipped with 7 digital IOs and 1 analog IO.
Supports combined use of two channels to meet high-speed programming requirements for eMMC.
Supports serial communication interface, easy to integrate into automated equipment.
Supports GPIO control to enable offline production without PC reliance.

Technical Specifications: Introduction to Product Specifications and Performance

Supported chip types	MCU，Flash，CPLD，eMMC	Web server	Web server mangemant
High-speed parallel programming	1 channel / 2 channel	DLL Development Library	Windows DLL，VC/VB/C#/LabView
Compact size	137 * 73 * 26 mm Easy to integrate	QT GUI	Advanced Project Management
ATE Integrated Design	Low-level isolation interface	Worldwide Support	Local sales, local service
Communication interface	LAN RJ45 1Gbs, Isolated Serial TTL 5V	Integrated management	Integrated file manager, easy project creation
Frequency range	Up to 50 MHz Maximum depends on the model	I/O Features	Wide voltage 1.2V-5.5V，7 digital I/O+1 analog I/O
Programming Protocol	SPI, IIC, JTAG, SWD, MDI, cJTAG, etc	Safety	Data encryption anti-piracy, I/O protection, continuous voltage monitoring
Memory storage	eMMC 64GB-256GB	Various models to choose	Thunder FL2	Speedo FL2	Speedo FL1	Speedo FL1 Lite
Detailed logs	Detailed log recording		Thunder FL2	Speedo FL2	Speedo FL1	Speedo FL1 Lite
Integrity check	Check for each programming session		25MHz	10MHz	10MHz	5MHz
Command Line	Simple text format, CLI tool		2CH	2CH	1CH	1CH
Real-time monitoring	Real-time & multi-device monitoring		256G	64G	64G	64G

Performance Measurement Demonstration: Measured Speed Comparison Under Identical Chips, Firmware and Scenarios

CE Certification

Supported Chip Manufacturers
