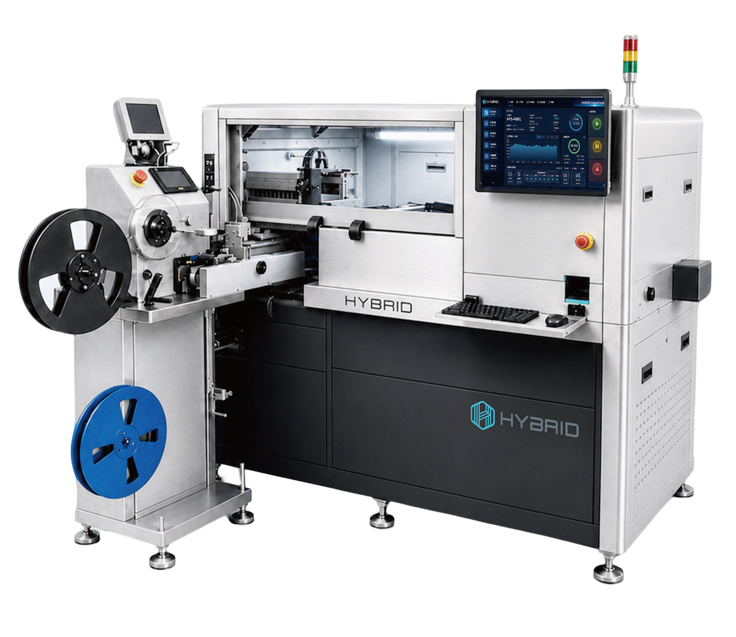

Integrating automatic feeding, visual positioning, precise pick-and-place, parallel programming and automatic material collection, it is ideal for high-precision, high-throughput offline IC mass programming scenarios.
Full-process automation minimizes manual intervention for higher efficiency and consistency.
Parallel programming and efficient motion control ensure high productivity and long-term stable performance.
Visual recognition and precise positioning guarantee high operational yield.

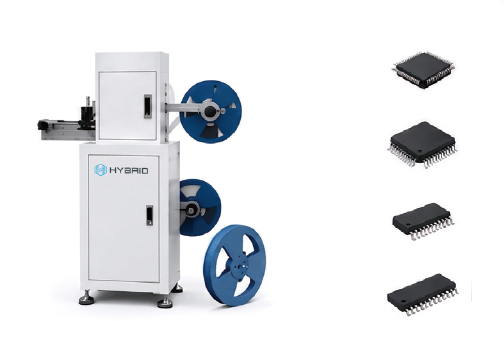

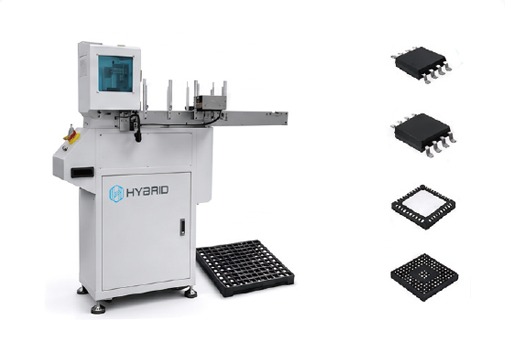

Multiple feeding options (Tray, Tape & Reel, Tube) for flexible production adaptation.
Feeding
01
Visual Recognition
02
Precise Pick-and-Place
03
Parallel Programming
04
Result Verification
05
Automatic Material Collection
06
→ ARM+FPGA Architecture
→ Multi-protocol Support
→ Multi-IC Compatibility
→ Industrial-grade Reliability

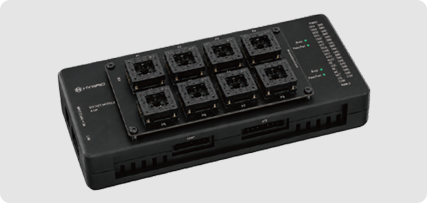

→ Supports up to 8 ICs parallel programming

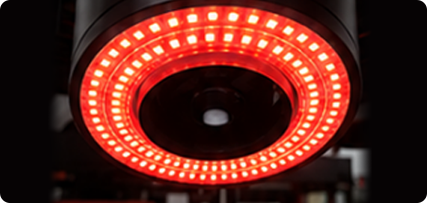

→ CCD Visual Inspection
→ Rapid Template Matching
→ Precise IC Positioning
→
Improved Changeover Efficiency

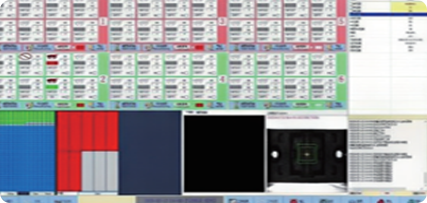

→ Recipe Management
→ Alarm & Status Monitoring
→ Log & Report Generation
→ MES/ERP Integration
| APS‑4001 Technical Specifications | |||
|---|---|---|---|
| Throughput | Max. 1500 UPH (depends on IC types) | Control System | Industrial PC / Windows 10 / 21-inch Monitor |
| Vision Processing | 1.3MP Camera, Image Accuracy ±0.01 mm | Communication Interface | Ethernet / USB 3.0 / USB 2.0 |

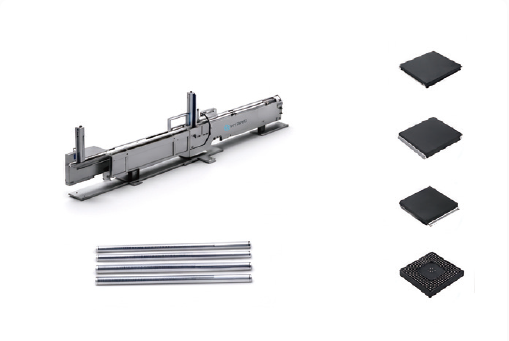

| Motion Mechanism | High-precision Linear Motion Module | Loading & Unloading Method | Tray / Tape Reel / Tube |
| Drive System | High-precision Servo Motor | Utilities | 220‑240 VAC，Single Phase，50‑60 Hz，0.6 MPa |
| Pick & Place System | 2 High-precision Vacuum Nozzles | Air Supply | 0.6 MPa，45 L/min |
| Resolution | X/Y/Z Axis: ±0.01 mm; U Axis: ±0.15° | Changeover Time | ≤10 Minutes |
